Fry Droids: Where Flavor Meets Innovation
Unleash Flavor with Our Smart Fry Droids
Introducing the Ultrasonic Frying Robot System
Indulge in perfectly fried, healthier meals with ease. Our cutting-edge robotic system seamlessly integrates smart automation and ultrasonic technology, delivering unparalleled precision and efficiency. Elevate your kitchen experience today.
Why Choose the Ultrasonic Frying Robot System?
Ultrasonic Frying Technology
Promote healthier diet with less oil absorption
Save costs with reduced manual frying time, leading to energy savings
Faster cooking times and consistent results with less oil
Safer workplace with reduced oil vapor using our technology
Reduce oil usage up to 50%, oil vapor up to 90%, frying time up to 25%
Smart Automation with Collaborative Robot
Streamline frying operations to minimize manual labor and achieve cost savings
Automation enhances production efficiency, ensuring consistent quality
Minimize risks associated with manual frying processes to reduce injuries and accidents
Easy-to-clean surfaces and components minimize the risk of contamination
Our simplified, modular design promotes reliability, scalability, and adaptability.
HOW IT WORKS?
Prepare Ingredients
Load your ingredients into the frying basket and place it in the Loading Zone
Order Input
Place your order into the system by selecting the recipe shown on the touch screen monitor
Automated Cooking
The collaborative robot and fryers ensure a precise frying process
Order Transfer
Pick up the frying basket from the Dispatching Zone, place it on the dish, and serve it
PRODUCT OVERVIEW

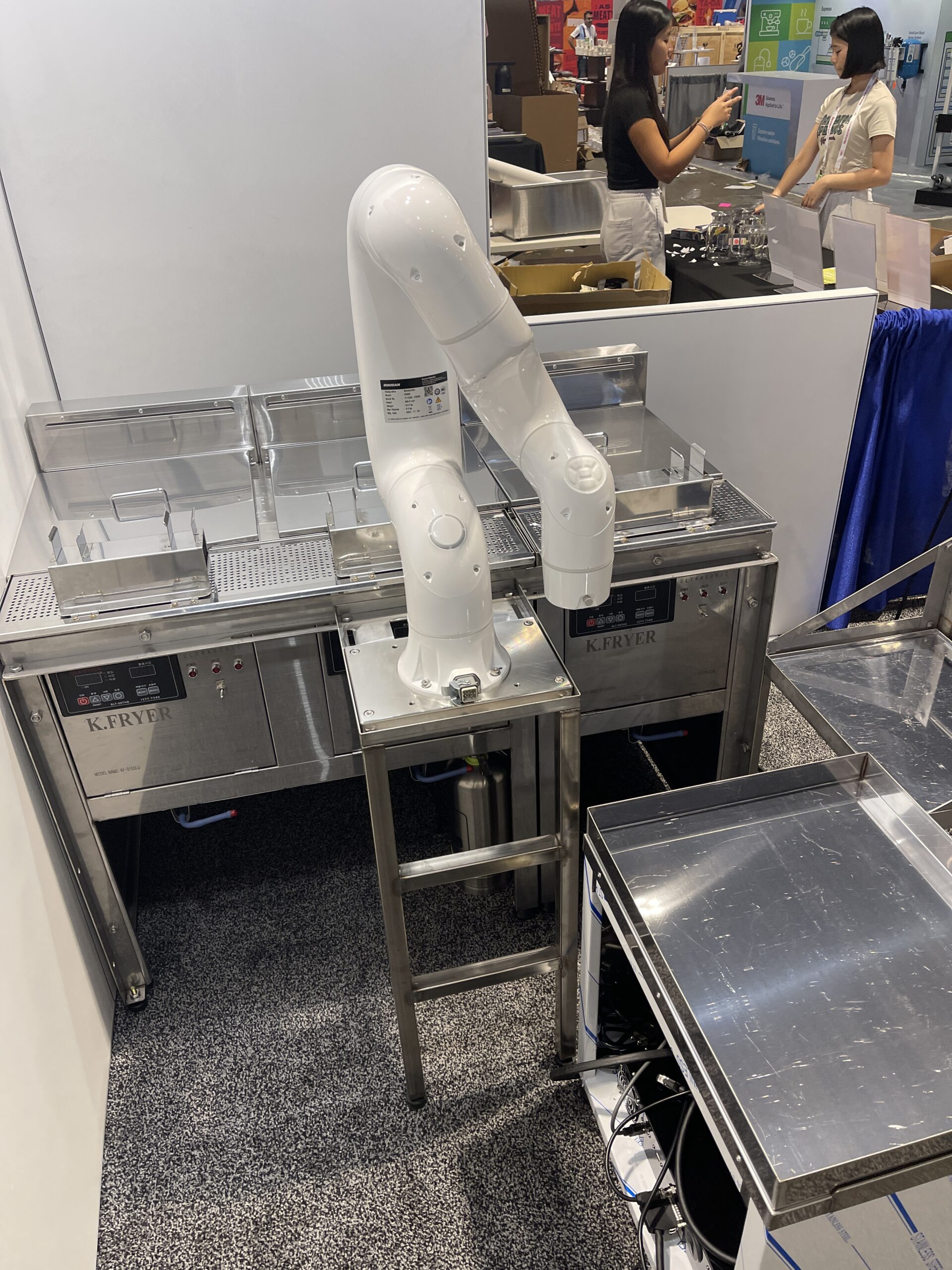

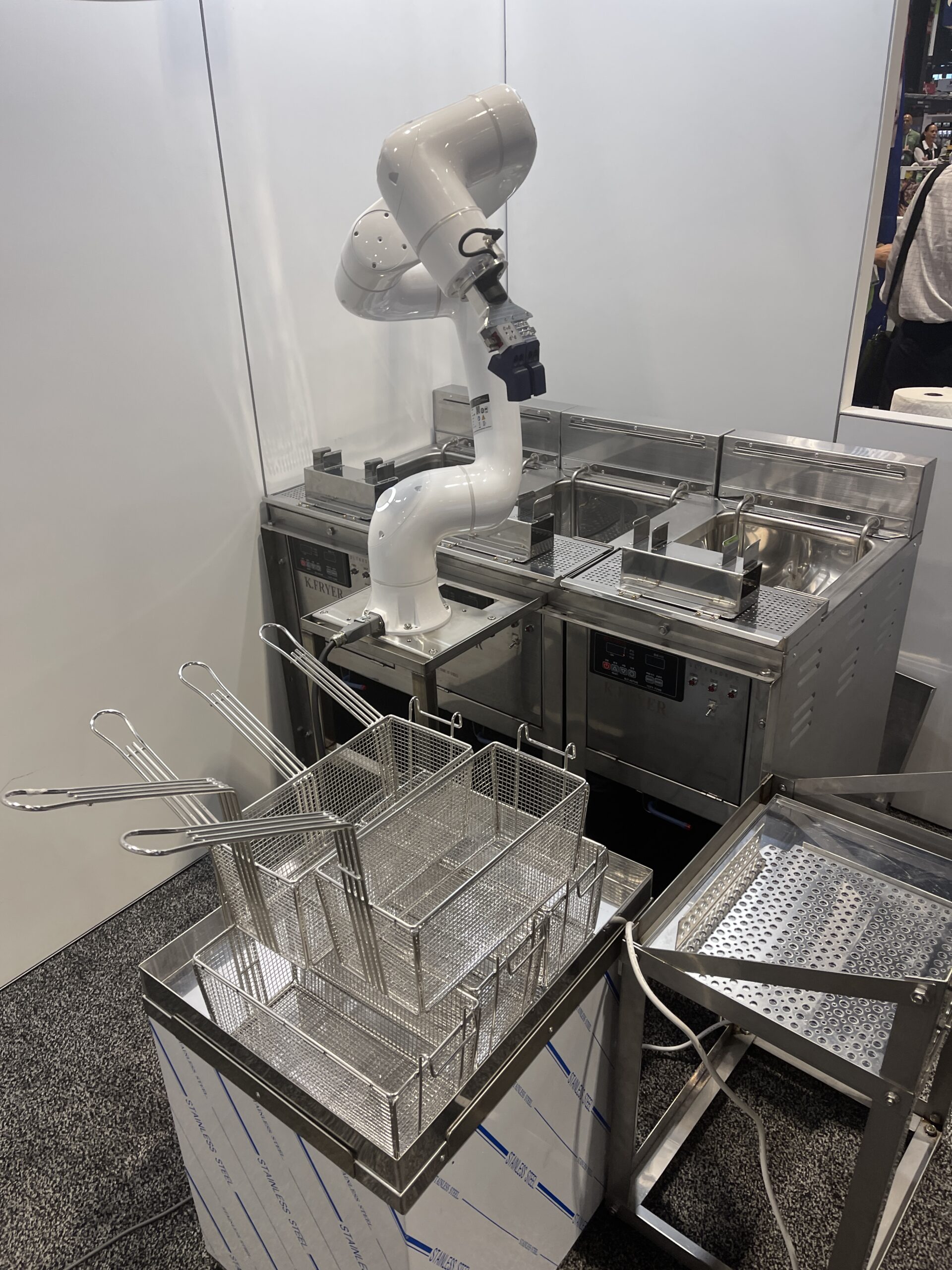

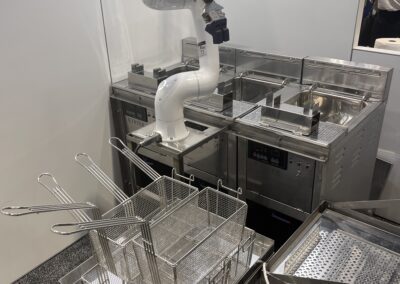

ELECTRIC FRYER & COLLABORATIVE ROBOT
Model Name: KF-E0509FP3- Dimensions(feet): 5.6′ W x 5′ D x 7′ H
- Dimensions(meter): 1.7m x 1.5m x 2.1m
- Weight: 250 lbs (113.4kg)
- Power Requirement: 1Ph, 200-240V, 50-60Hz, 17kW
- Ultrasonic Specifications: N/A
- Oil Capacity: 123 lb (17gal, 63L)
- Material: Food-grade stainless steel
- Control Interface: 15-inch touchscreen display
- Connectivity: Wi-Fi, Thunderbolt, Ethernet enabled
- Cooking Modes: Preset and customizable options
ULTRASONIC FRYER & COLLABORATIVE ROBOT
Model Name: KF-E0509UFP3- Dimensions(feet): 5.6′ W x 5′ D x 7′ H
- Dimensions(meter): 1.7m x 1.5m x 2.1m
- Weight: 250 lbs (113.4kg)
- Power Requirement: 1Ph, 200-240V, 50-60Hz, 17kW
- Ultrasonic Specifications: 40kHz, 50W *3
- Oil Capacity: 123 lb (17gal, 63L)
- Material: Food-grade stainless steel
- Control Interface: 15-inch touchscreen display
- Connectivity: Wi-Fi, Thunderbolt, Ethernet enabled
- Cooking Modes: Preset and customizable options
COLLABORATIVE ROBOT W/O FRYERS
Model Name: KF-E0509F3- Dimensions: Site-specific
- Weight: 110 lbs (49.9kg) (w/o fryers)
- Power Requirement: 1Ph, 200-240V, 50-60Hz, 2kW(w/o fryers)
- Ultrasonic Specifications: N/A
- Oil Capacity: Fryer-specific
- Material: NSF certified collaborative robot
- Control Interface: 15-inch touchscreen display
- Connectivity: Wi-Fi, Thunderbolt, Ethernet enabled
- Cooking Modes: Preset and customizable options
- Customizable model for existing kitchens
Collaborative Robot
Doosan Robot Model E0509
- Payload: 11lb (5 kg)
- Reach: 35.43” (900 mm)
- Repeatability: ±0.001” (±0.05 mm)
- Electricity Requirements: 1Ph 200-220V, 50-60Hz, 2kW
- NSF Certified
Ultrasonic Fryer
Ultrasonic Fryer KF-015/6DLU
- Dimensions(inch): 16-33W x 27D x 33H
- Dimensions(mm): 425-850W x 700D x 850H
- Power: 1Ph 200-220V, 50-60Hz, 5-10kW
- Cooking Oil Capacity: 40-80 lb (5.45-
- Ultrasonic Specifications: 50 wt, 40 kHz *1/2
- Tank Configuration: Single/Dual
Accessories
Frying System Apparatus
- Dimensions(inch): 15W x 11-23D x 17-27H
- Dimensions(mm): 400W x 300-600D x 450-700H
- Number of Baskets: depends on work circumstance
- Material: Stainless Steel
- Compartment for Frying Baskets / Robot System
SAFETY AND COMPLIENCE
Certification marks and safety features of frying system
NSF & IP 66 Certified Robot
NSF & UL Certification Pending Fryers
CORE TECHNOLOGY
Ultrasonic Frying
Healthier Cooking
Ultrasonic waves reduce oil absorption, resulting in crispy dishes with fewer calories and less grease, providing a healthier way to enjoy fried foods.
Enhanced Flavor and Texture
Ultrasonic heat distribution preserves flavors and nutrients, delivering perfect crispiness and superior taste without sacrificing ingredient quality.
Energy Efficiency
Faster cooking at lower temperatures saves energy, reducing utility costs and environmental impact for a more sustainable kitchen.
Smart Automation
Safety First
Advanced sensors detect human presence, preventing accidents and ensuring safe interaction between the robot and kitchen staff.
Precision Movement
High-precision robotic arms handle ingredients with accuracy, delivering consistent, high-quality food preparation every time.
Ease of Use
Intuitive controls and programmable tasks simplify integration, allowing easy adaptation into your kitchen workflow without extensive training.
User-Friendly Interface
Intuitive Touchscreen
User-friendly touchscreen interface offers easy access to recipe selection and cooking time adjustments. Monitor entire frying process with just a few taps.
Customization
Easily save custom recipes to accommodate various cuisines. Create a personalized menu tailored to your specific requirements.
Remote Monitoring
Our system supports remote monitoring camera which you can access through a mobile app, giving you the convenience to oversee operations from a distance.
ADVANTAGE
- Innovative Integration: Our system combines robots with ultrasonic fryers for automated ingredient handling and cooking.
- Cost Efficiency: Reduce energy costs with lower operating temperatures and faster cooking times, saving up to 25% in energy and and 50% in oil. This leads to significant labor savings and a rapid ROI for your business.
- Health Conscious: Our ultrasonic technology decreases oil absorption by 50%, resulting in crispy, flavorful dishes with fewer calories and produces up to 90% less oil vapor for a healthier kitchen environment.
- Reliable Performance: Built with high-quality materials for durability, our system ensures consistent operation. Should any issues arise, our online support and on-site technicians provide swift resolutions to minimize downtime.
WARRANTY AND SUPPORT
- Standard Warranty:
Enjoy a 1-year limited warranty, ensuring your Frying Robot System operates smoothly.
- Customer Support:
- Technical Support:
Our team is available around the clock via phone, email, and chat to assist with any inquiries or issues. - Remote Assistance:
Our technicians can provide remote diagnostics and assistance to resolve issues quickly.
- Technical Support:
- On-Site Service:
Certified technicians offer immediate on-site maintenance in select regions to minimize downtime.
- Training Materials:
Benefit from a complete set of resources, including a user manual, quick-start guide, and tutorial videos to help you get the most out of your device.
- Standard Warranty:
LOANS
Equipment Loan
- Flexible financing options are available to help you acquire the Ultrasonic Frying Robot System without a significant upfront cost.

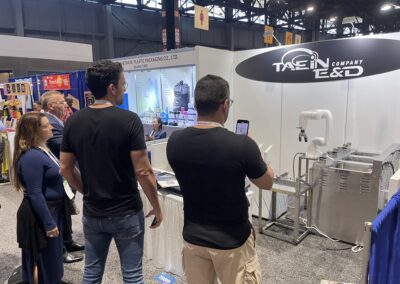

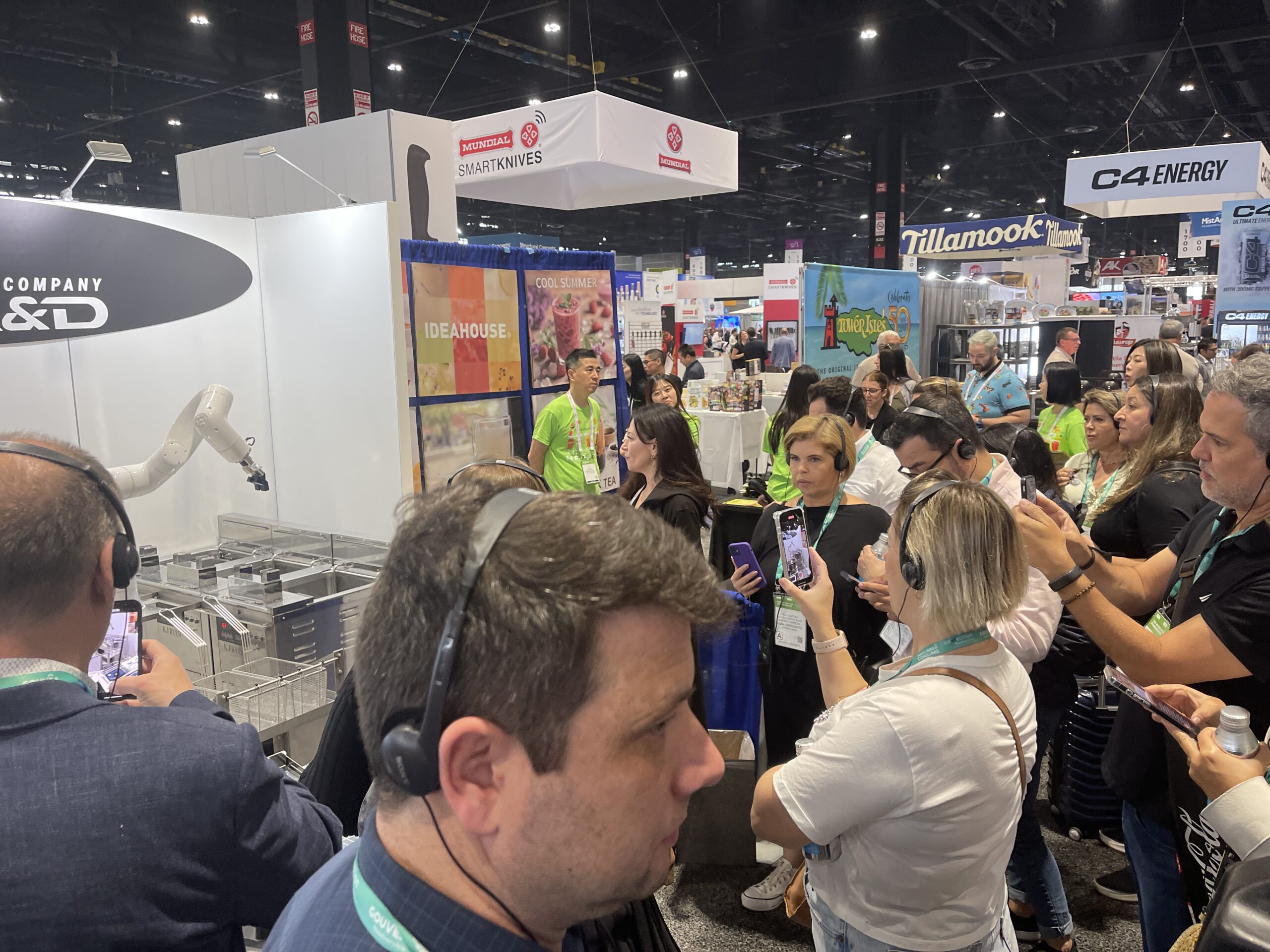

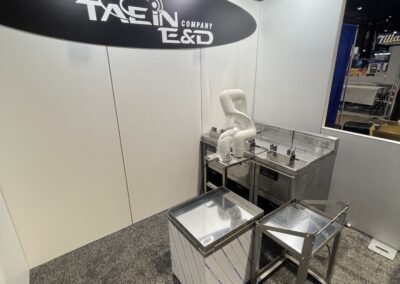

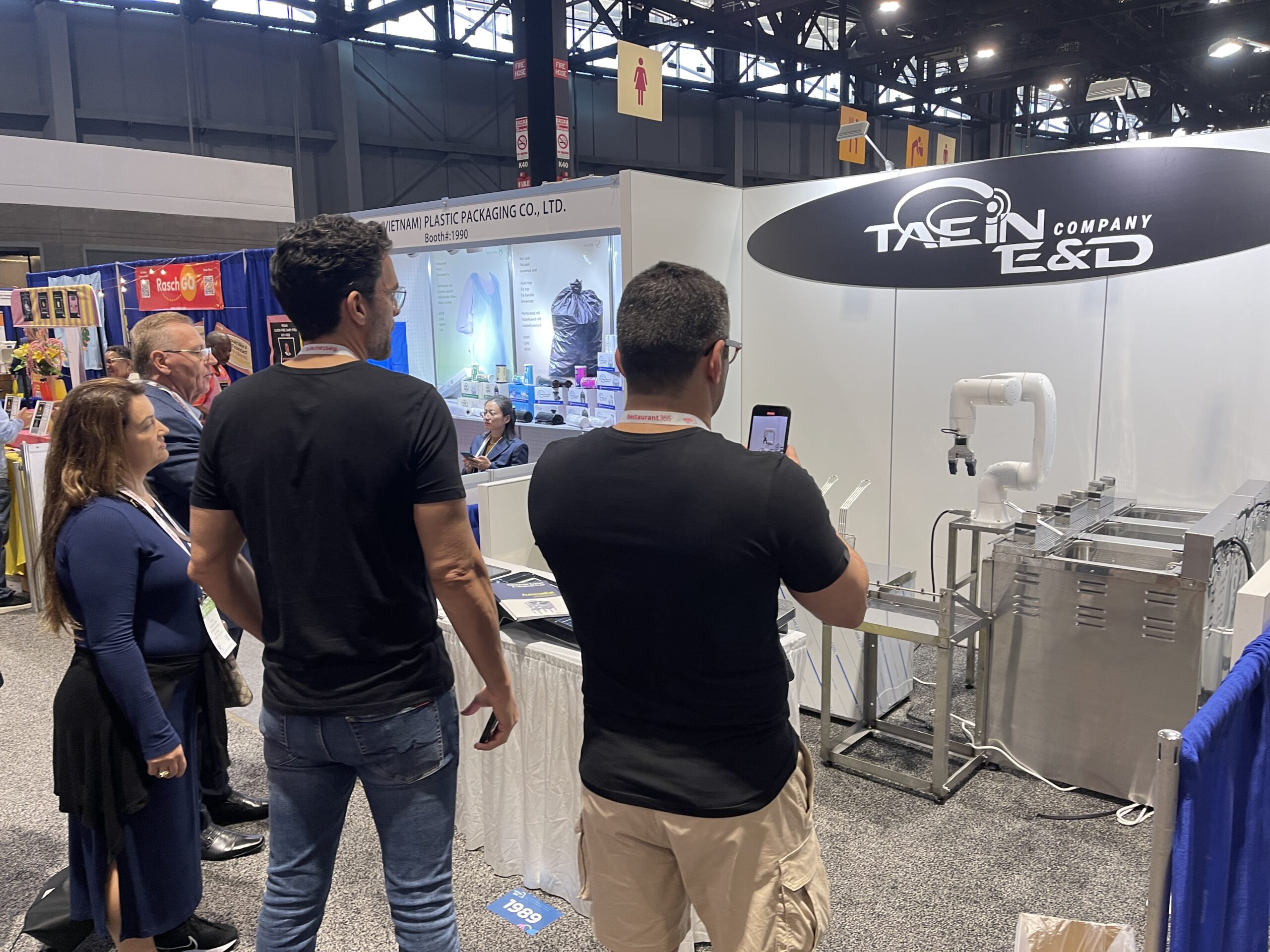

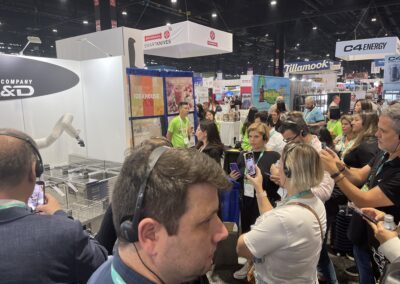

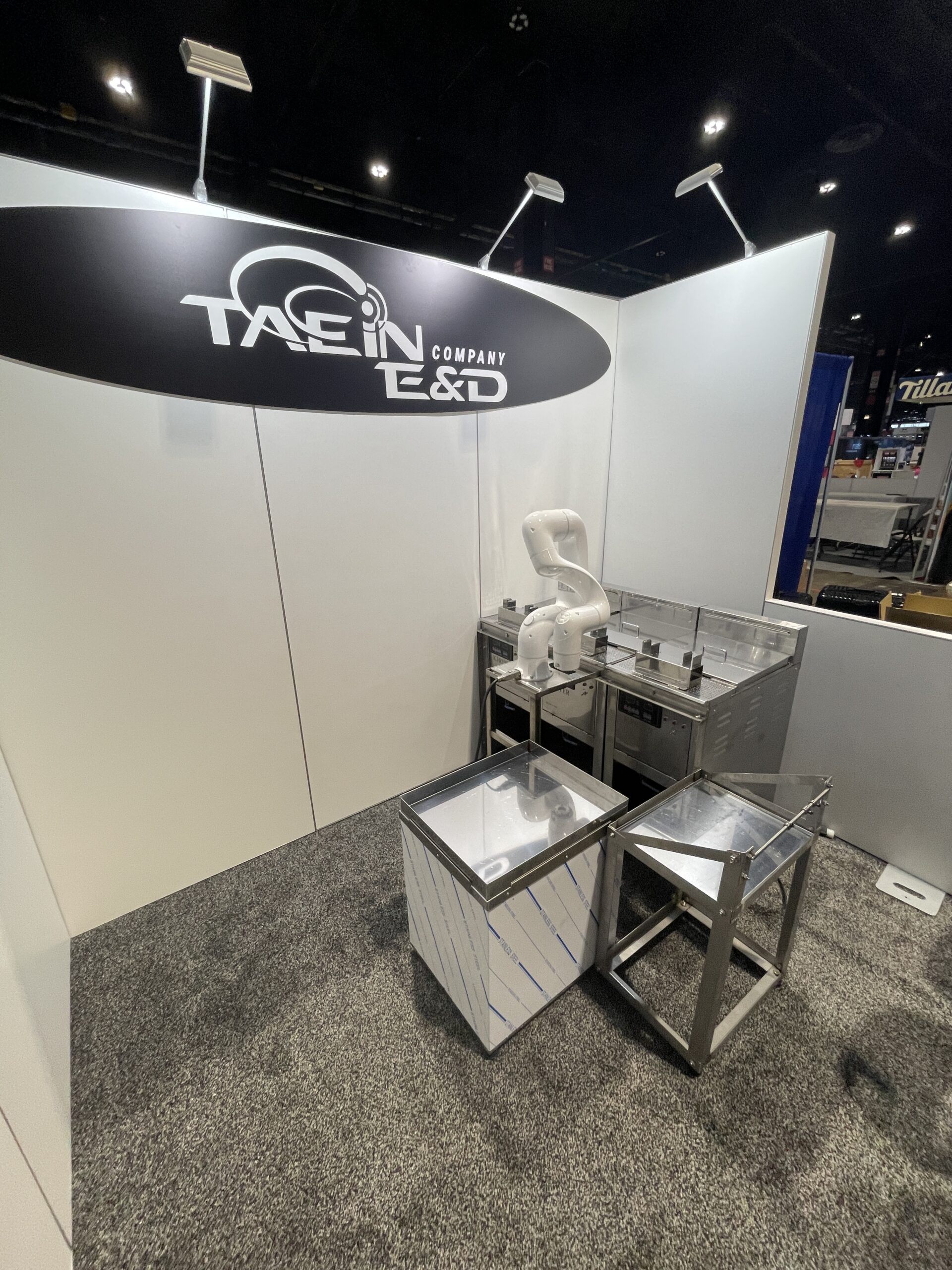

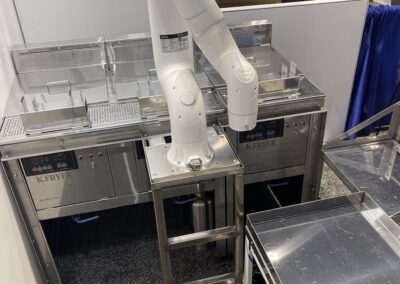

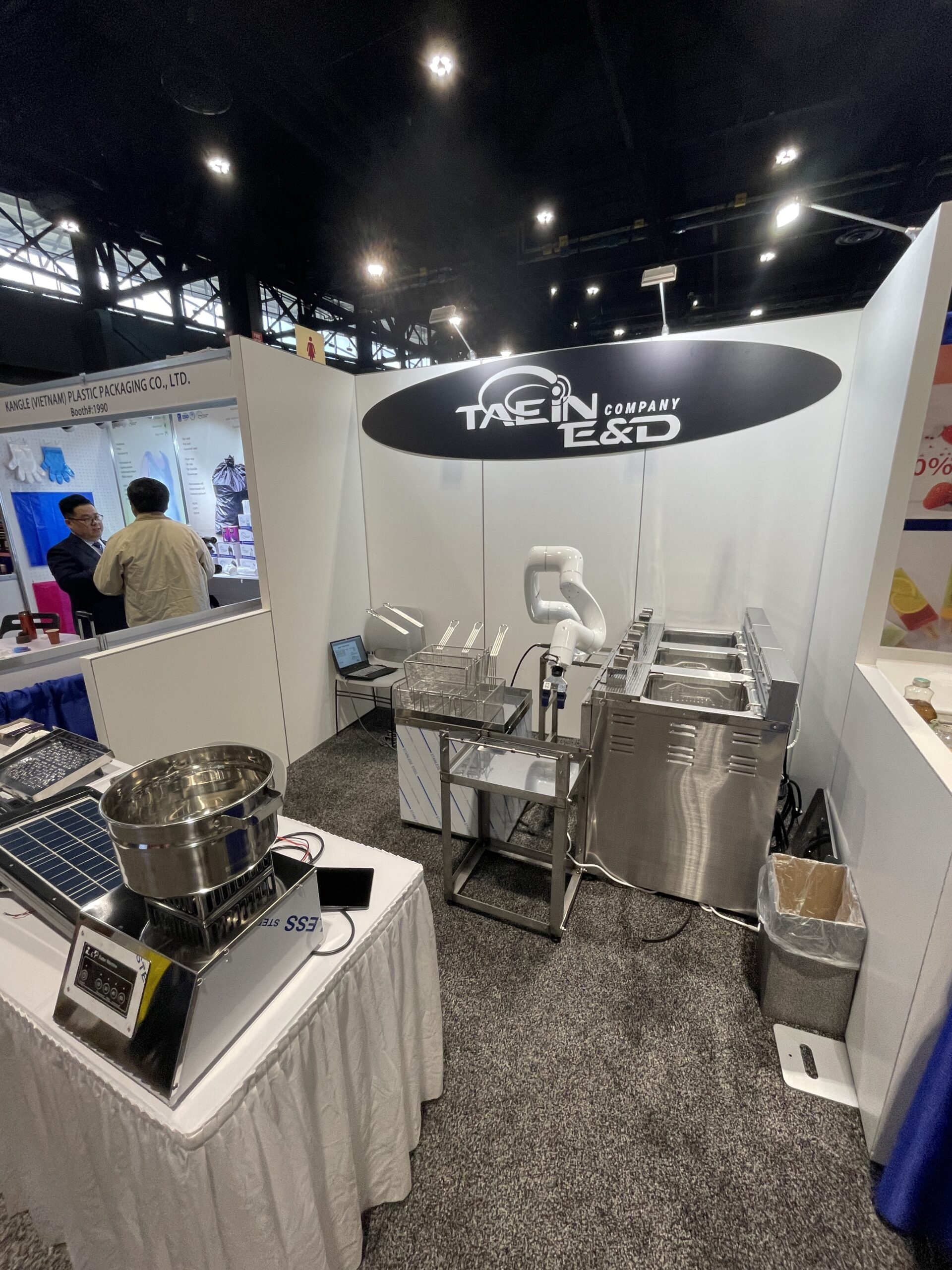

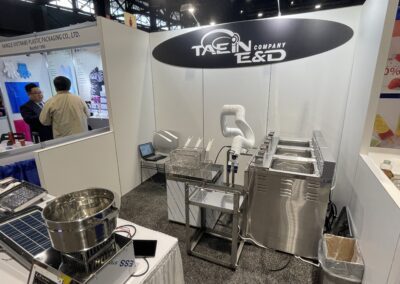

GALLERY
OUR LOCATIONS
FUTURE TASK ROBOTICS
TAEIN E&D
CO FOODS
Corporate: Located in Gyeonggi-do, Republic of Korea
US Head Office: Located in East Lansing, MI, 48823
Branch Office: Located in Atlanta, GA, 30096
INQUIRY
Interested in transforming your cooking experience? Reach out to us for more information or to place an order.
- General Inquiry: info@futuretaskrobotics.com
- Customer Service/Maintenance : cs@futuretaskrobotics.com
